Description
DBU-2328 IP, Modernizing Legacy Serial Infrastructure for Mission-Critical Networks
The DBU-2328 IP modernizes legacy RS-232 infrastructure by consolidating four separate hardware devices into a single, high-reliability appliance. Purpose-built for 911 and Next Generation 911 (NG911) environments, it provides secure Serial-over-IP connectivity with automatic dual-server redundancy to ensure continuous operation when every second matters.
Traditional redundant serial architectures typically require two IP-to-Serial adapters—one for the primary server and one for the standby server—along with a dedicated RS-232 Data Sharing Unit and an RS-232 Broadcast Unit. The DBU-2328 IP integrates all four functions into a single 1U rack-mounted platform, dramatically simplifying installation while reducing rack space, power consumption, cabling, and overall system complexity.
Featuring dual 10/100 Ethernet input interfaces, industry-standard RFC 2217 Virtual COM Port technology, and eight independent RS-232 output ports, the DBU-2328 IP seamlessly bridges legacy serial devices to redundant IP network servers without requiring changes to existing application software.
Designed for high availability, the unit employs hardware-based RTS/CTS arbitration to automatically manage active and standby server connections. If the primary server becomes unavailable, communications are automatically transferred to the standby server without operator intervention, providing a transparent migration path from legacy serial architectures to today's IP-based mission-critical networks.
Why Upgrade?
· Replace four separate devices with one integrated 1U appliance.
· Eliminate two IP-to-Serial adapters, one RS-232 Data Sharing Unit, and one RS-232 Broadcast Unit.
· Reduce rack space, cabling, installation time, and power consumption.
· Lower system complexity and maintenance costs.
· Automatic primary-to-standby server failover using hardware RTS/CTS arbitration.
· Industry-standard RFC 2217 Virtual COM Port support.
· Preserve existing RS-232 equipment while enabling modern IP-based connectivity.
· Designed for 911, NG911, public safety, transportation, and other mission-critical applications.
· FIP-3 Compliance
· 3-Year Warranty and Support
| |
|
| |
SPECIFICATIONS
|
| Application |
The DBU-2328 IP securely connects legacy RS-232 devices to NG911 networks using dual Ethernet ports and industry-standard Virtual COM Port technology.
|
|
ETHERNET INTERFACES
|
| Ports |
2 x 10/100Base-T (A and B)
|
|
Connector
|
RJ-45
|
|
Configuration
|
Static IP only
|
|
Protocols
|
TCP/IP
|
|
Indicators
|
Link/Activity (per port)
|
|
RS-232 OUTPUT INTERFACES
|
|
Ports
|
8 (Broadcast)
|
|
Connector
|
DB-25 Female
|
|
Signals Supported
|
RXD, RTS, CTS, DCD
|
|
Data Rates
|
Up to 19.2 Kbps
|
| Power Source |
100-120Vac, 0.16A or 200-240Vac, 0.08A, 50-60Hz, external 110/220 volt select switch, IEC Power Inlet, (2) 5mm Fuses |
| Parity |
8, N , 1
|
|

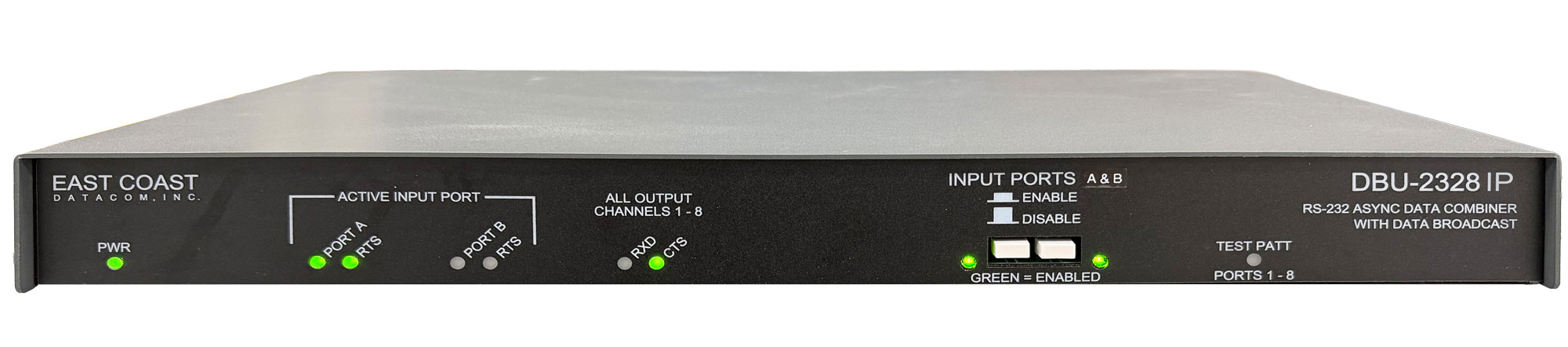

LED INDICATORS (FRONT PANEL)
|
|
PWR
|
Power
|
|
Port-A/ B RTS
|
RTS Status for Port A and Port B
|
| Active |
Ethernet Activity
|
|
Test Patt.
|
Test Pattern Active
|
|
RXD
|
Receive Data
|
|
CTS
|
Clear To Send
|
|
INPUT PORTS (A & B)
|
|
Enable / Disable
|
Per Port
|
|
Connector
|
RJ-45
|
|
Indicator
|
Green = Enabled
|
|
POWER
|
|
Input Voltage
|
90-240 VAC, 50/60 Hz
|
|
Power Consumption
|
Less than 3 watts totaI
|
|
Connector
|
IEC 60320 C14
|
|
ENVIRONMENTAL
|
|
Operating Temperature
|
0•C to +50•c
|
|
Storage Temperature
|
-20•C to +70•C
|
|
Humidity
|
5% to 95% non-condensing
|
|
MECHANICAL
|
|
Form Factor
|
1U Rackmount
|
|
Dimensions
|
19.0" W x 7.0" D x 1.75" H
(482.6 x 177.8 x 44.5 mm)
|
| Weight |
6.0 lbs (2.7 kg)
|
|
Mounting
|
19" Rack Ears Included
|
|
PROTOCOLS
|
|
TCP/IP
|
RFC 793
|
|
VIRTUAL COM PORT
|
RFC 2217
|
|
COMPLIANCE & SAFETY
|
|
Safety
|
UL-62368-1
|
|
EMC
|
FCC Part 15 Class A
|
| Security Features |
| |
TPM 2.0 chip with FIPS 140-3 Level 2 compliance
|
|
ORDERING INFORMATION
|
| Part Number |
310000 |
| Model |
DBU-2328 IP
|
| Warranty |
Three Years, Return To Factory |
| Ordering Information |
Part Number: 310000
Model: DBU-2328 IP
8-Port RS-232 Broadcast Device with Dual Ethernet (Static IP)
|
| Included with each unit: |
1) Operations Manual
2) U.S.A. Grounded Power Cord, Part # 713015
3) 1U Rackmount ears, PT# 702037
4) 0.080ma Fuse, Qty (2) Part # 714001 |
