DBU-TTL, TTL Data Broadcast Unit

The DBU-TTL Data Broadcast Unit is designed for use in receive only data broadcast applications. The unit supports 8-Ports Data/Clock distribution of TTL signals on BNC connectors. 1U rack mount chassis.

press to get the DBU-TTL: HTML Spec Sheet PDF Spec Sheet


DBU-232, RS-232 3-PORT DATA BROADCAST UNIT

The DBU-232 is designed to Broadcast Data and Clock RS-232 control signals. The device has one input port and three output ports. This product is used to split a data stream for multiple users. Data rates up to 128 Kbps are supported.



DBU-2328, 8-PORT RS-232 DATA BROADCAST UNIT

The DBU-2328 is designed to Broadcast Data, Clock and an optional control signal(DCD). The device has one input port, eight output ports and a cascade port. This product is used to split a data stream for multiple users. Data rates up to 128 Kbps are supported.



DBU-16, 16-PORT DATA BROADCAST UNIT

The DBU-16 is designed for use in receive only async data broadcast applications. The unit has two separate input ports, capable of accepting RS-232 or RS-422(or any V.11 compliant interface) data. The user must select, via a slide switch the preferred input method. Additionally, the unit has a dedicated cascade port for chaining DBU-16 units together.



DBU-V11, V.11 or RS-530 DATA BROADCAST UNIT

The DBU-V11 is designed to broadcast Data, Clock and Indicate (optional signal) control signals. The interface is balanced V.11 and is compliant with X.21, RS-422/449, RS-530, RS-485, V.35 and V.36 specifications. The device has one input port, eight output ports and a dedicated cascade port. This product is used to split a data stream for multiple users. Data rates up to 20 Mbps are supported, UL and CE Approved.

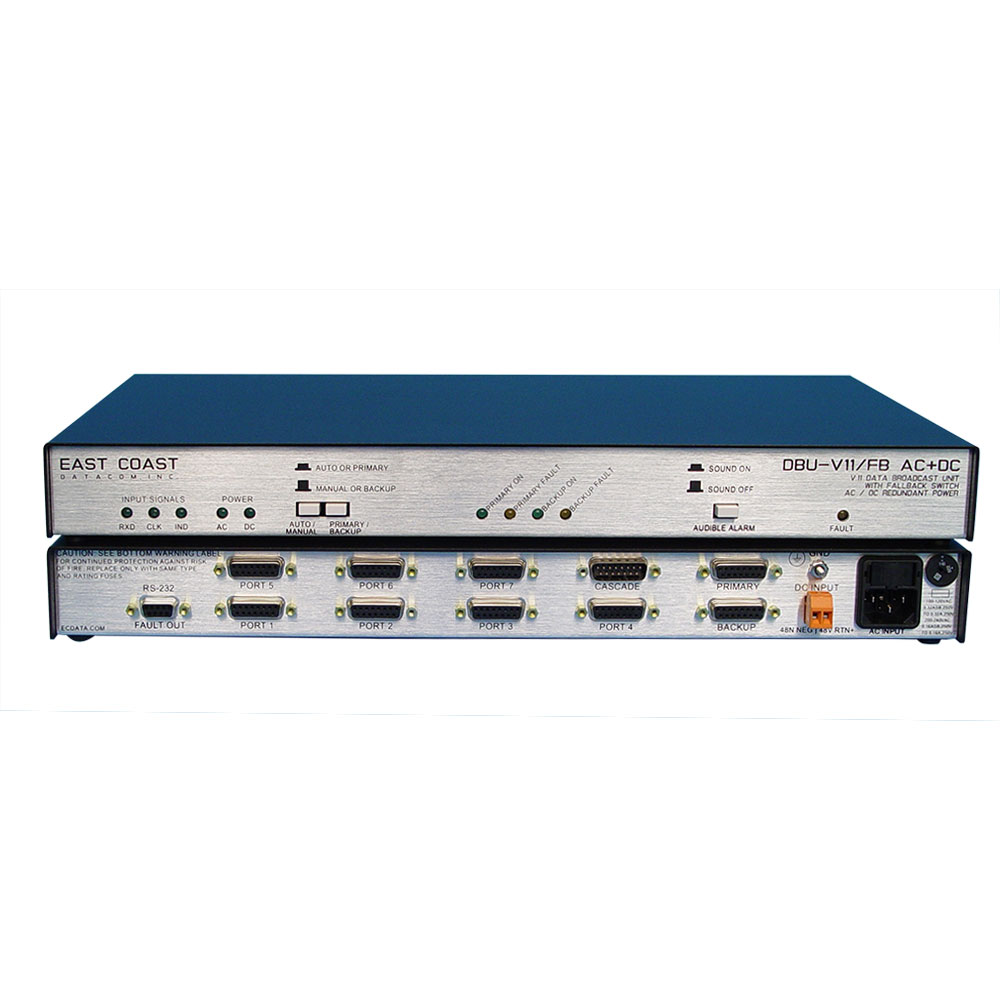

DBU-V.11/FB, DATA BROADCAST WITH FALLBACK

The DBU-V11/FB is a data broadcast unit that has a balanced V.11 interface and is compliant with X.21, RS-422/449, RS-530, RS-485, V.35 and V.36 specifications. The unit has an integral fallback switch that allows redundant data feeds to be utilized. Ideal solution for radar data distribution.



UDC-DBU, MODULAR DATA BROADCAST UNIT

The UDC-DBU data broadcast unit is designed to Broadcast Data, Clock and a optional control signal on RS-232 or any V.11 balanced interface. The Data Broadcast Unit has one input port and four output ports. This product is used to split a data stream for multiple users. Data rates up to 20Mbps are supported.

press to get the UDC-DBU: HTML Spec Sheet PDF Spec Sheet


DBU-HSSI, HSSI DATA SPLITTER

The DBU-HSSI is designed to broadcast Data and Clock signals. The interface is balanced Emitter Coupled Logic(ECL)and is compliant to HSSI electrical specifications. The device has one input port and four output ports. This product is used to split a data stream for multiple users of simplex data.
